Linear Algebra

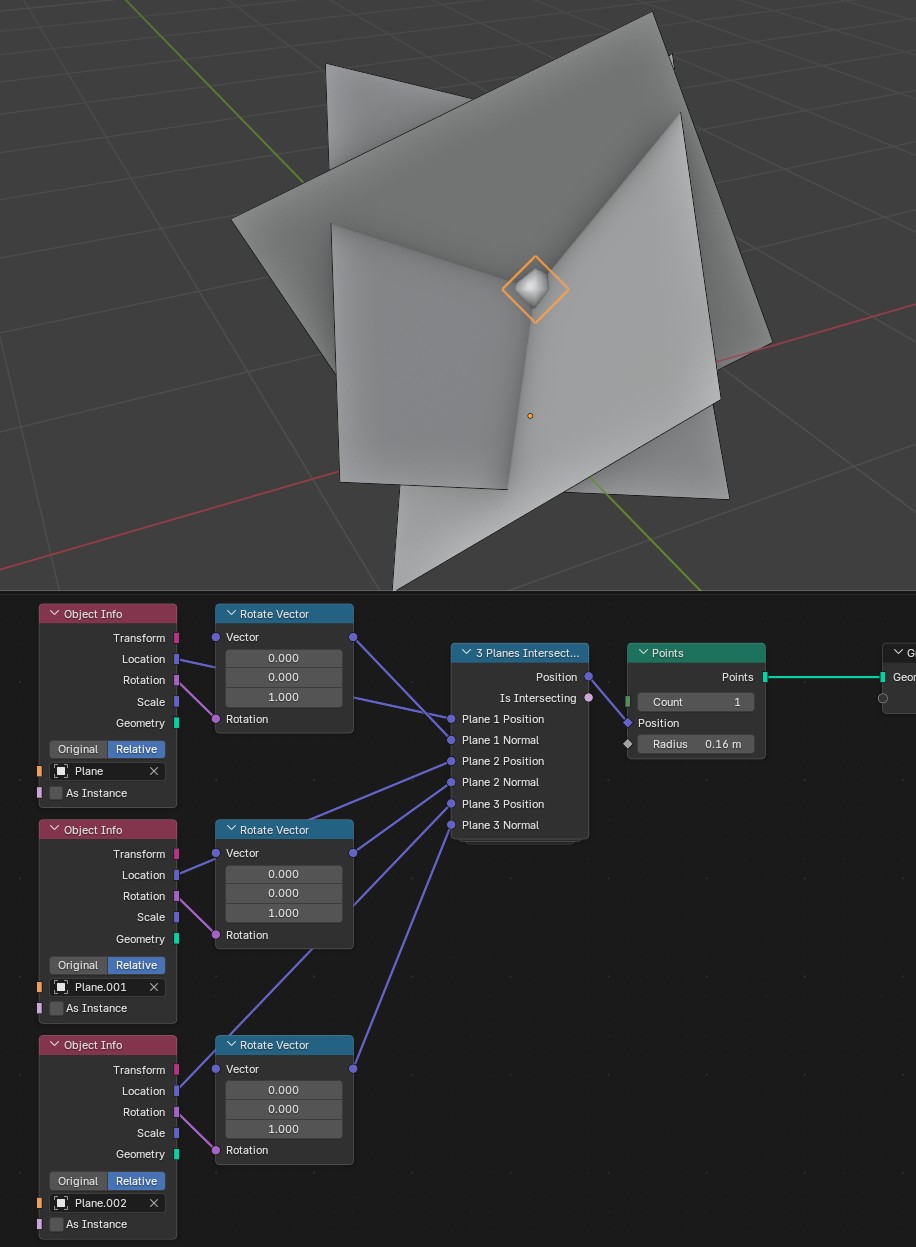

3 Planes Intersection
Creates diretional normal vector given point cloud
- Plane 1 Position
Position of plane
- Plane 1 Normal
Normal of plane
- Plane 2 Position
Position of plane
- Plane 2 Normal
Normal of plane
- Plane 3 Position
Position of plane
- Plane 3 Normal
Normal of plane
Fit Plane
Creates diretional normal vector given point cloud
- Position
Position of the points
- Group ID
Group if for points
Line Line Intersection
Calculates intersection point between 2 lines on the Z axis
- Line 1 Point 1
First point of the line
- Line 1 Point 2
Second point of the line
- Line 2 Point 1
First point of the line
- Line 2 Point 2
Second point of the line
Line Plane Intersection
Calculates intersection points between lines and plane
- Line Point 1
First point of the line
- Line Point 2
Second point of the line
- Plane Position
Position of intersection plane
- Plane Normal
Normal of intersection plane
Triangle Incircle
Calculate incircle from triangle
- Point 1
Point 1 of triangle
- Point 2
Point 2 of triangle
- Point 3
Point 3 of triangle
- Center
Center of circle
- Radius
Radius of circle
- Normal
Normal direction of circle
