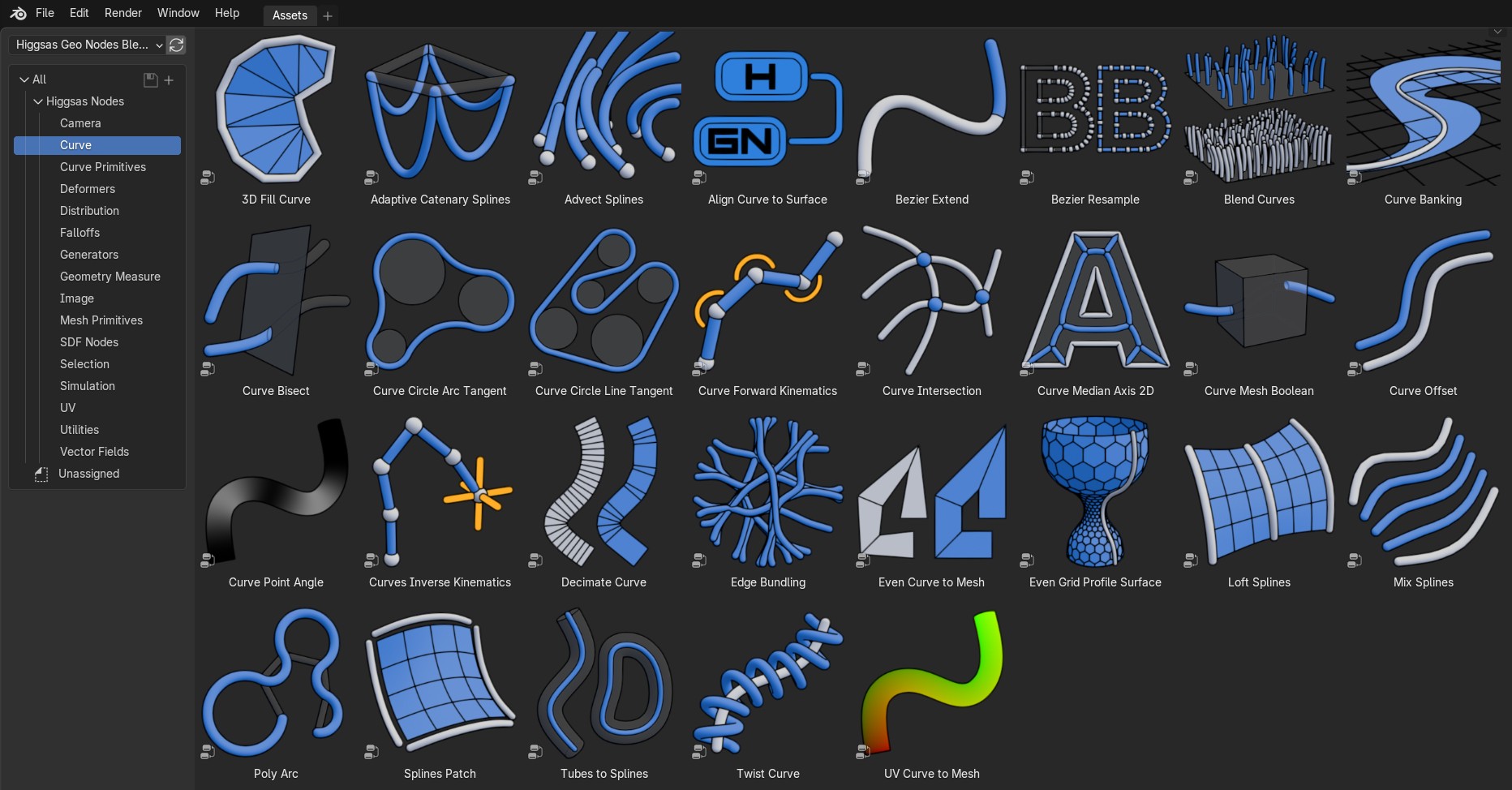

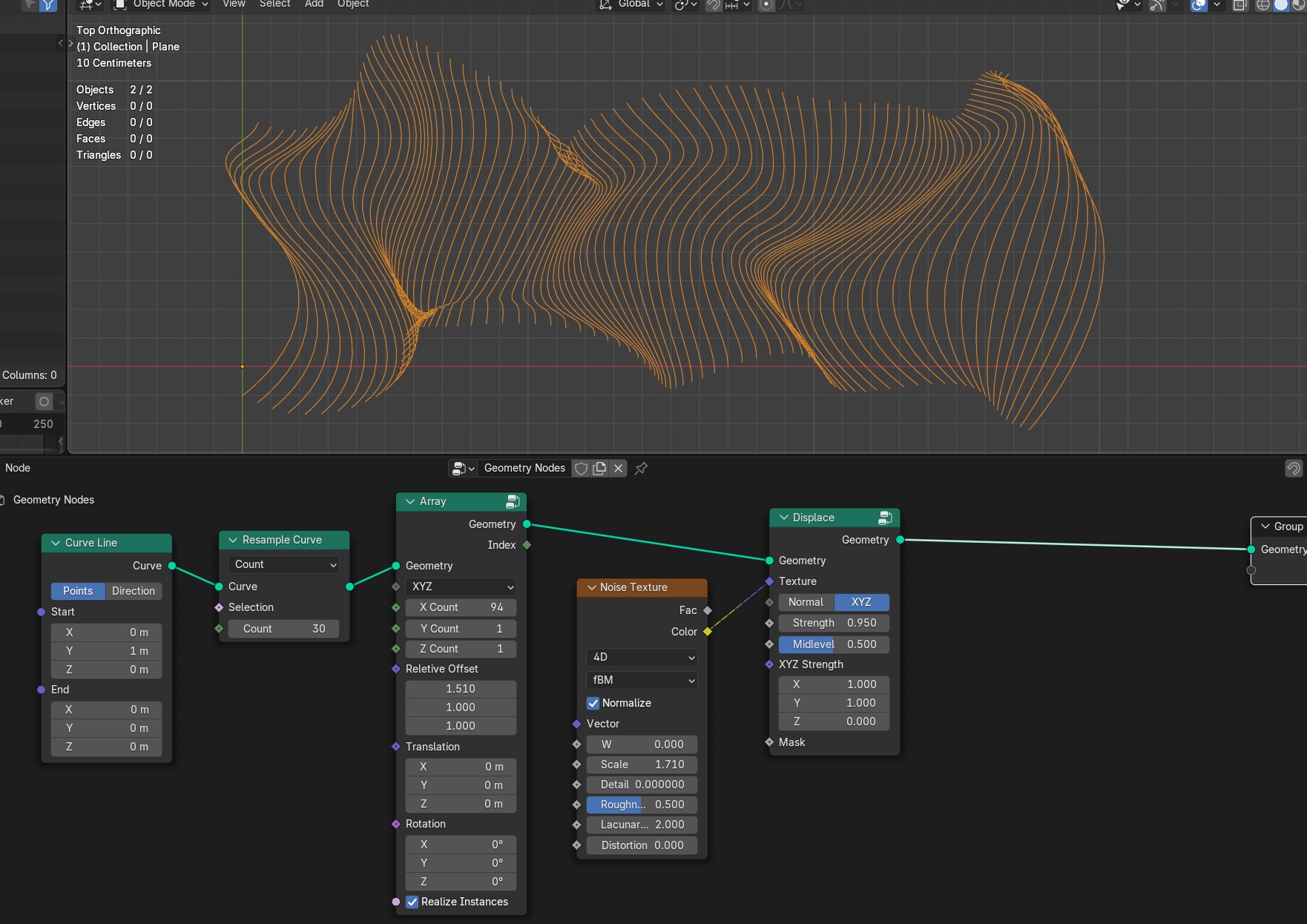

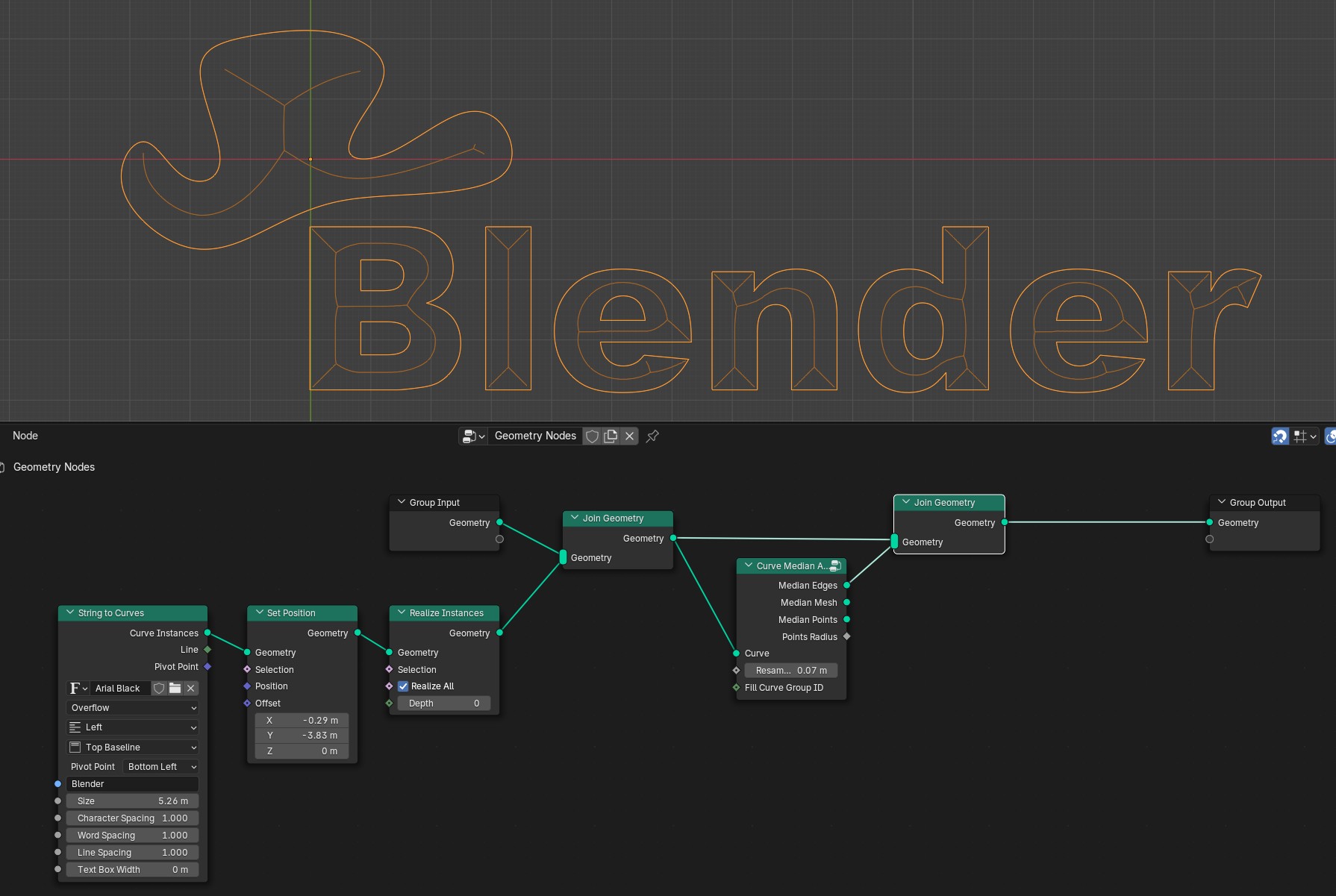

Curves
2D Hilber Curve
Creates hilbert curve
- Size
Size of hilber curve
- Order
Order of hilber curve
- Absolute Size
Makes hilbert curve exactly match Size
- Moore Curve / Cyclic
Creates Moore curve that is cyclic
3D Curve Fill
Fills curves with face in 3d
- N-Gons/Triangles
Fills with single n-gon face or triangulates it
Adaptive Catenary Splines
Creates physically accurate rope sag effect that maintains its length from a splines with 2 points
- Splines Length
Splines length per spline segment
- Splines Resolution
Resolution of the splines per spline segment
- Axis Rotation
Rotates spline around its axis
Warning
Splines segments must be separated

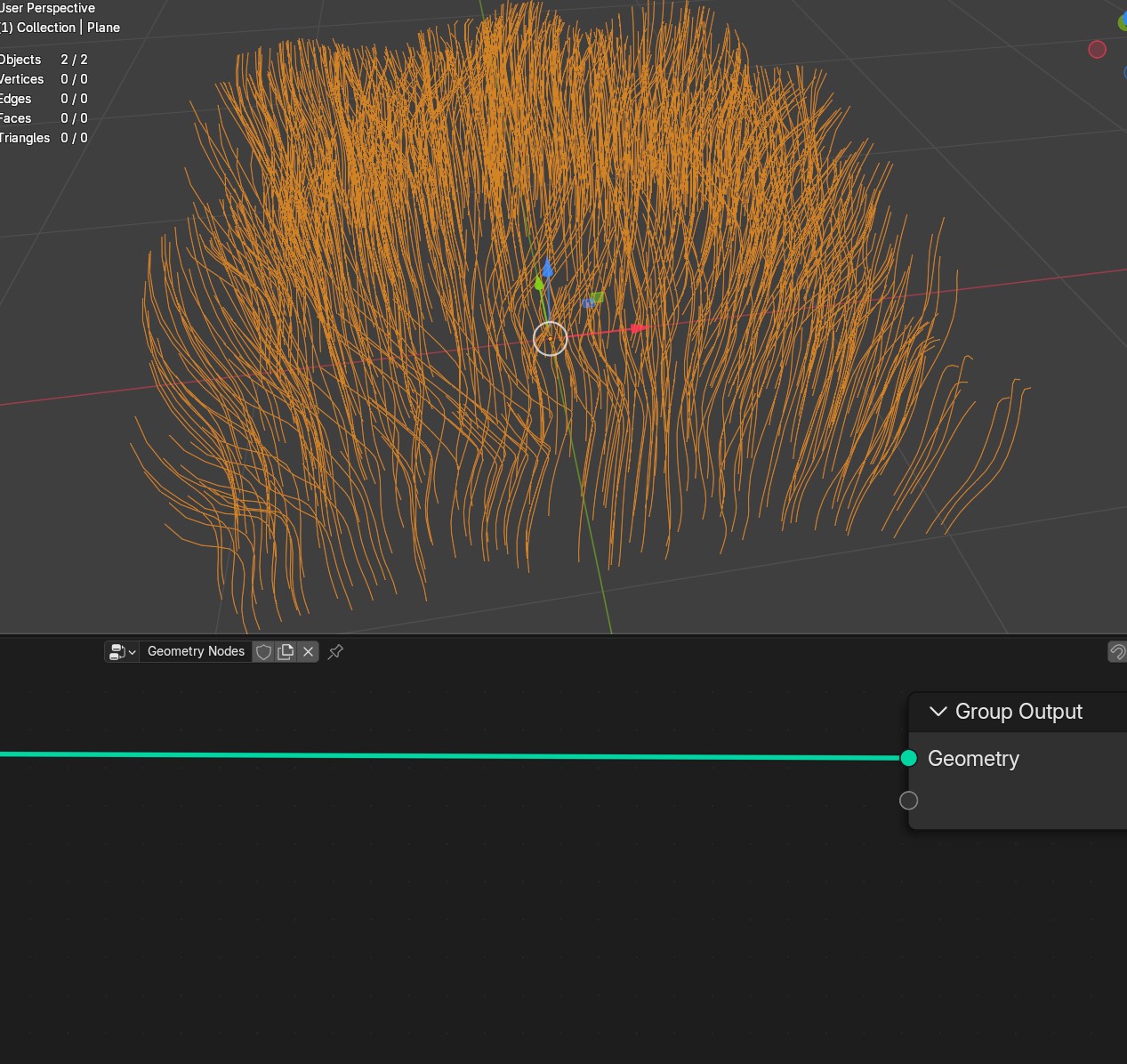

Advect Splines
Instances splines on points and advects/moves splines each step by vector
- Steps
Steps of the splines
- Direction
Vector direction that splines moves each step
Align Curve Normal
Aligns curve normal to the Direction vector by tilting it
- Direction
Direction that curve normals will be aligned
- Tilt
Tilts curve

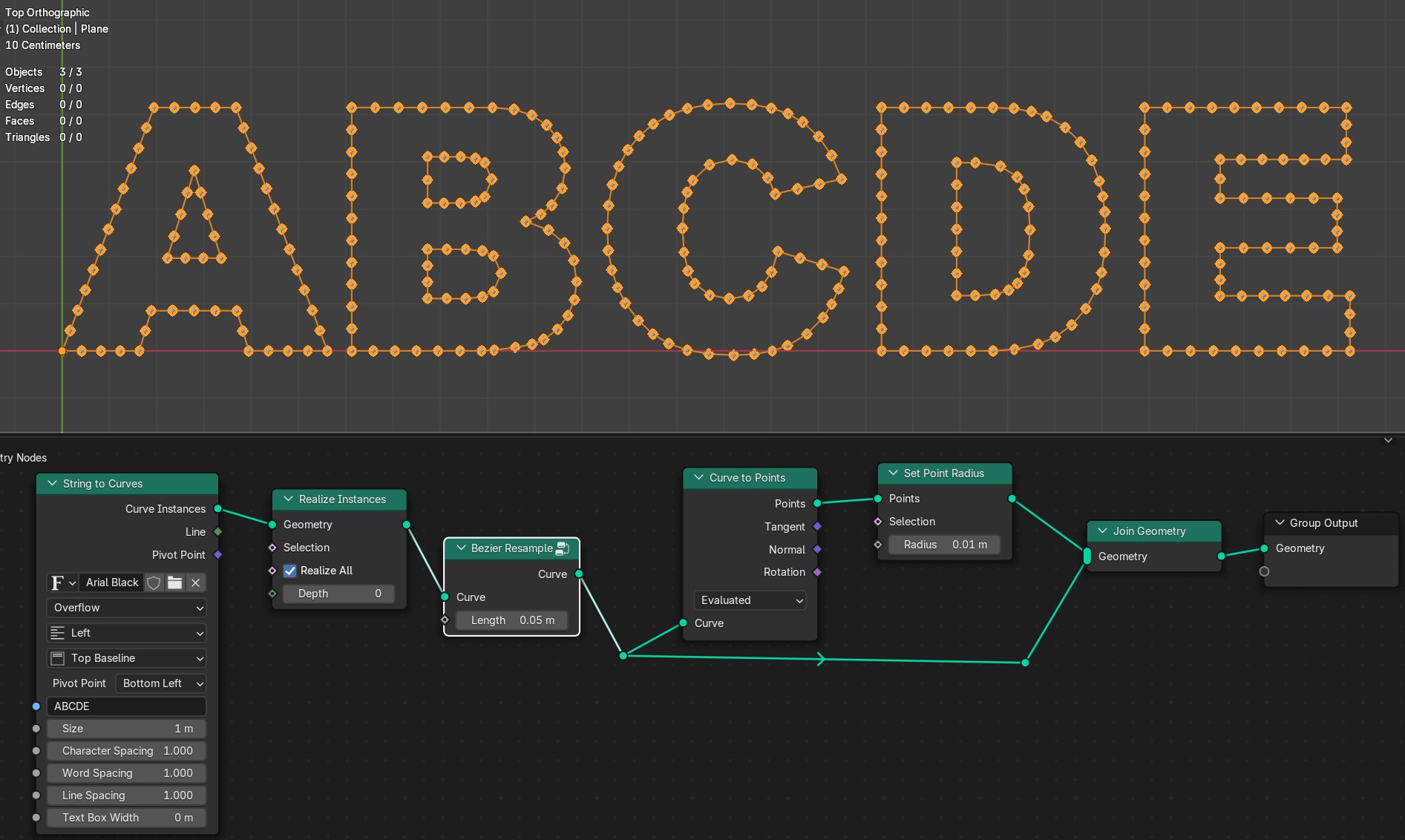

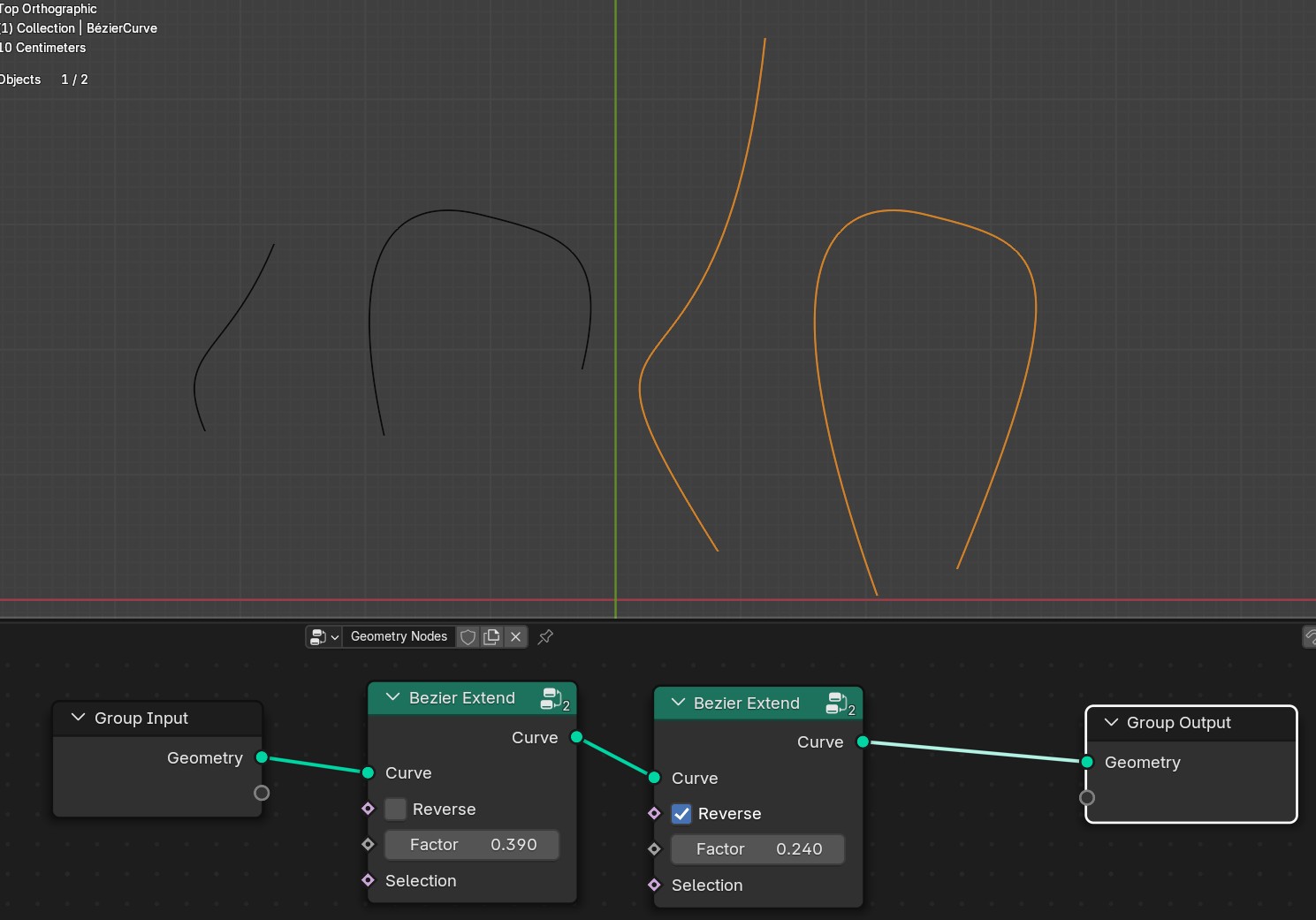

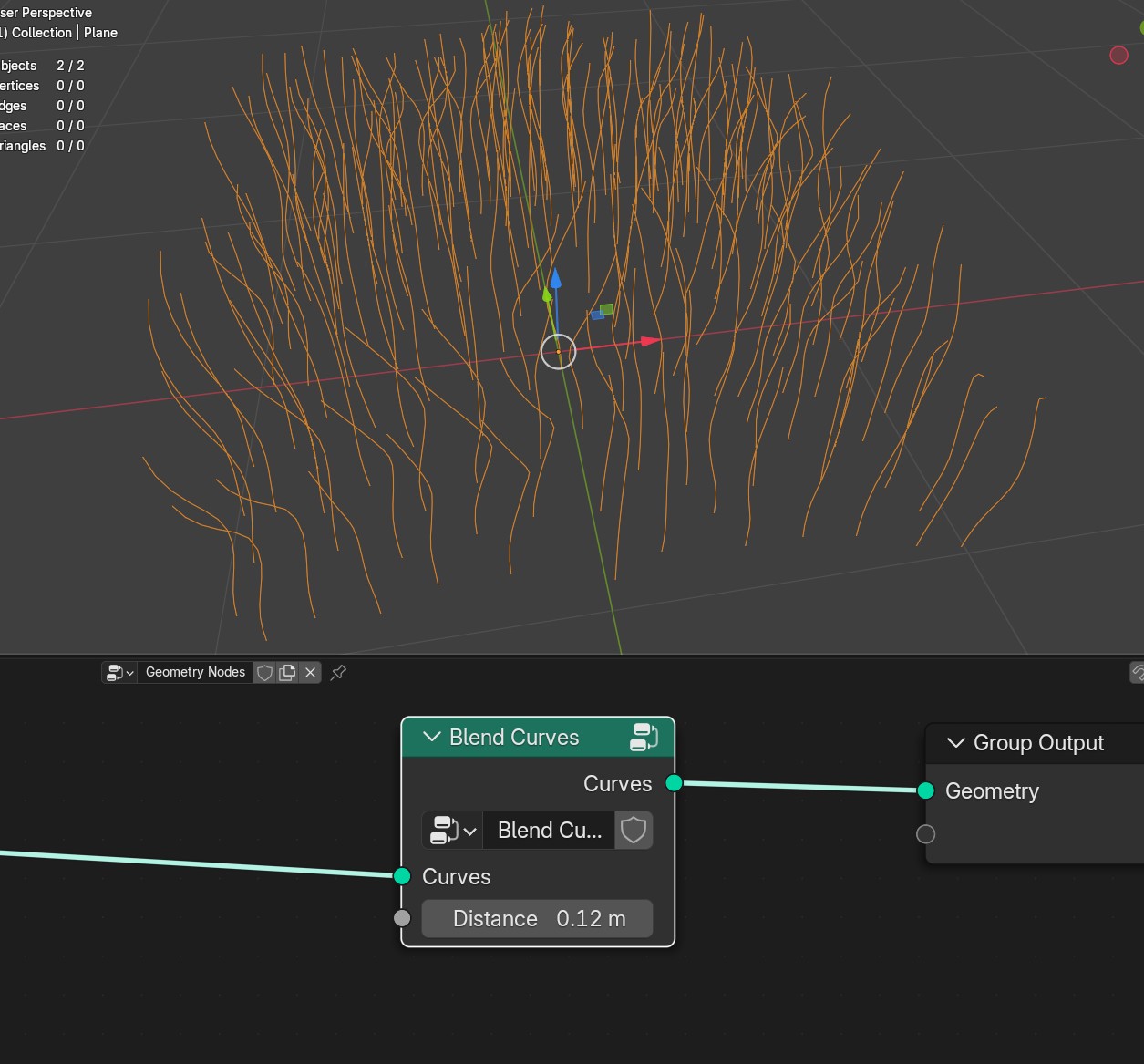

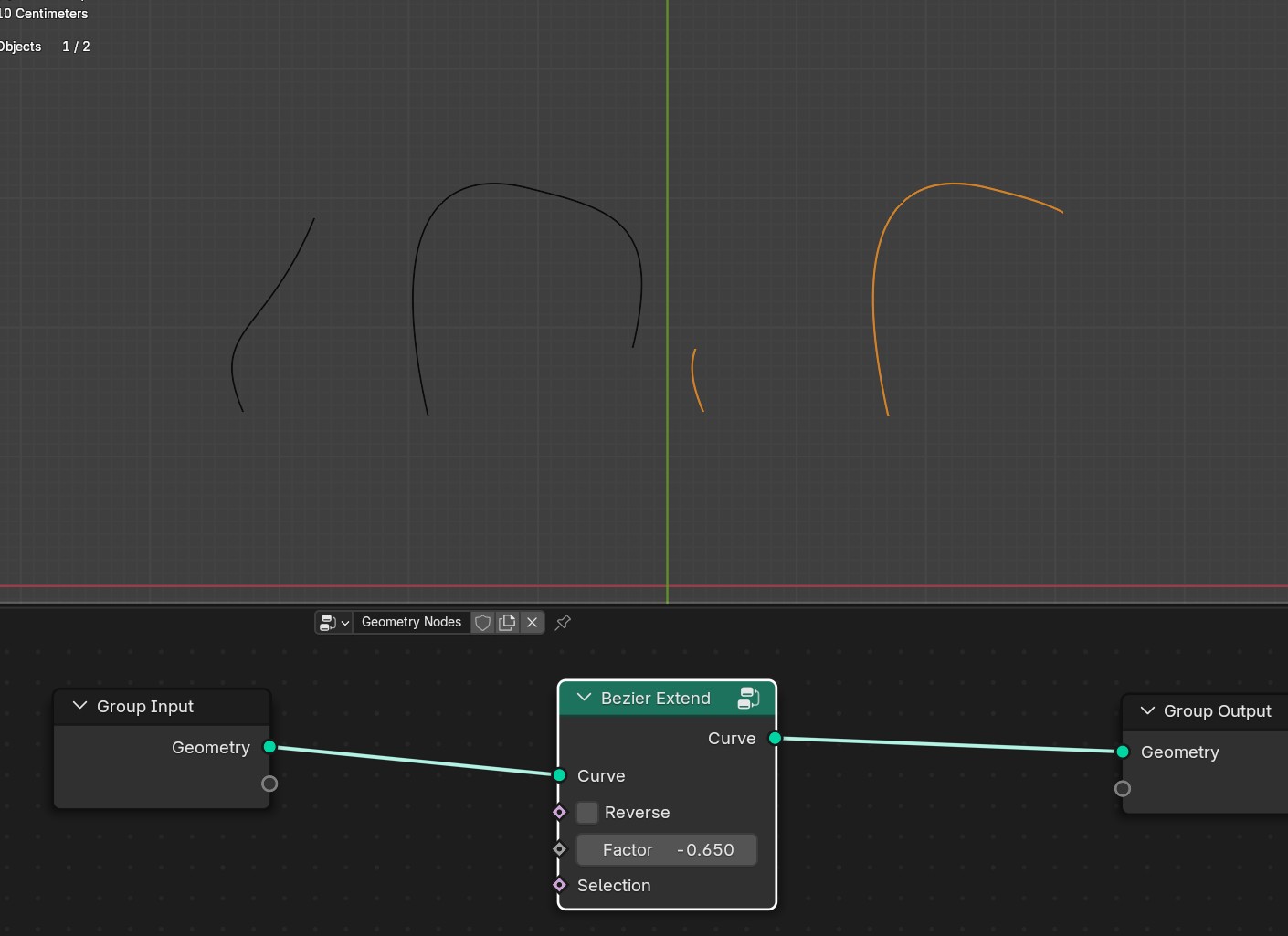

Circle Outer/Inner Tangent Curve
Bevels curve segments in a way that connects circles inner/outer tangnets
- Resolution
Resolution of the bevel
- Radius
Radius of the bevel
- Up Axis
Axis of bevel
- Flip Sides
Flips bevel side
Curve Banking
Sets curve tilt to create road banking effect depending on curve curvature
- Banking
Amount of banking curve tilt
- Blur
Blurs banking tilt for smoother results
- Tilt
Tilts whole curve
Curve Bisect
Cuts a curve along a custom plane
- Place Position
Position of cutting plane
- Plane Normal
Direction of cutting plane
- Flip Direction
Flips cutting plane direction

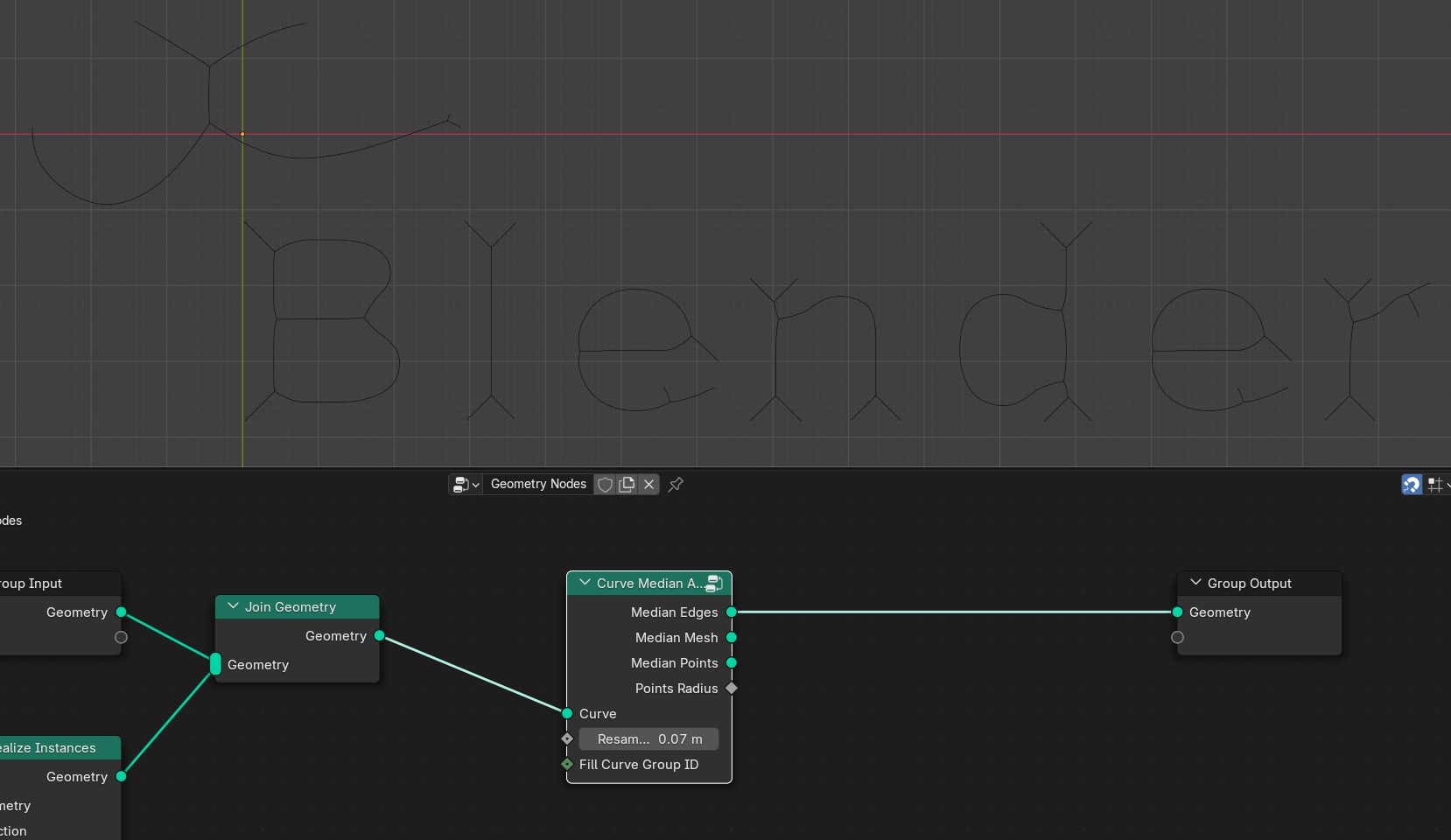

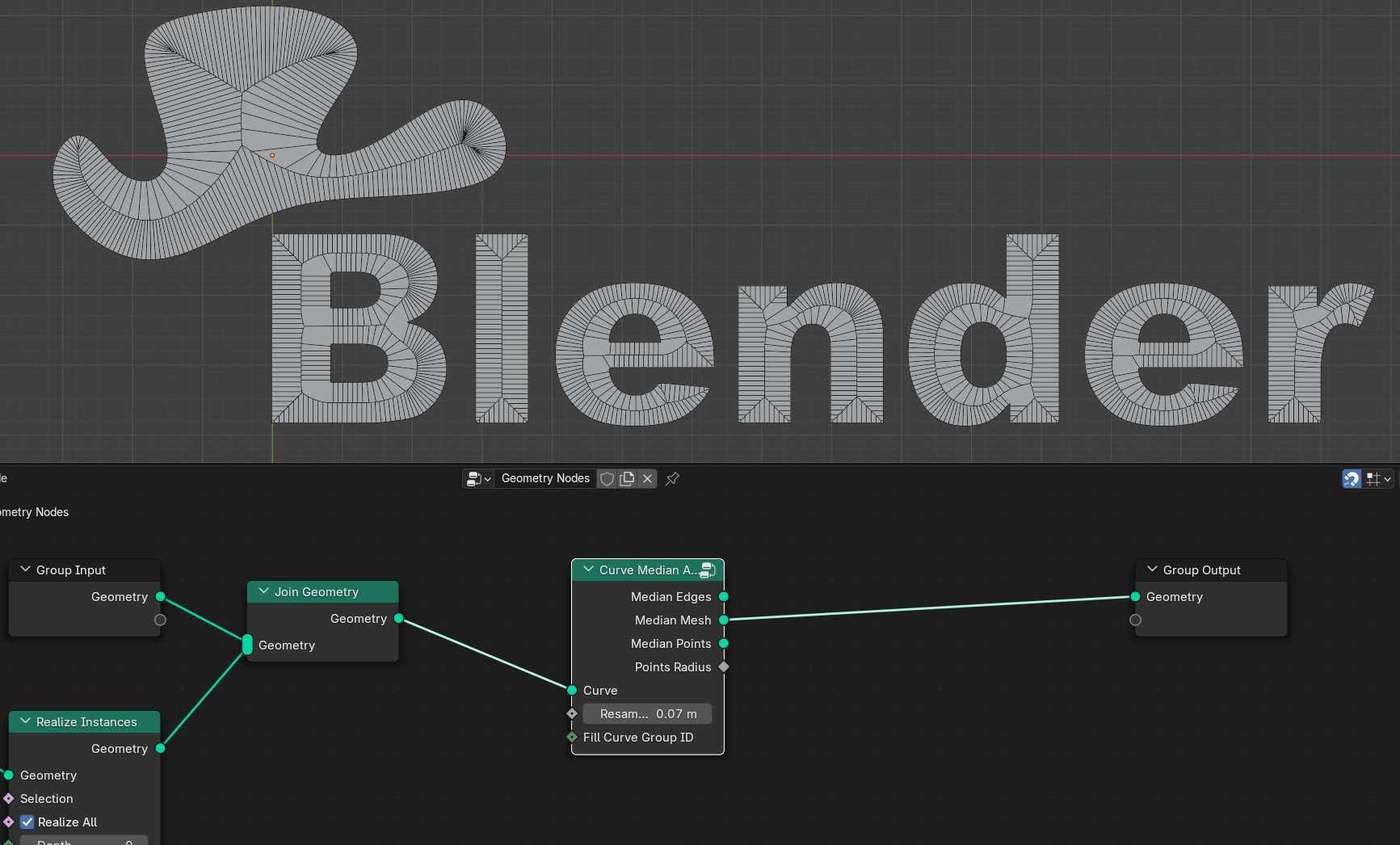

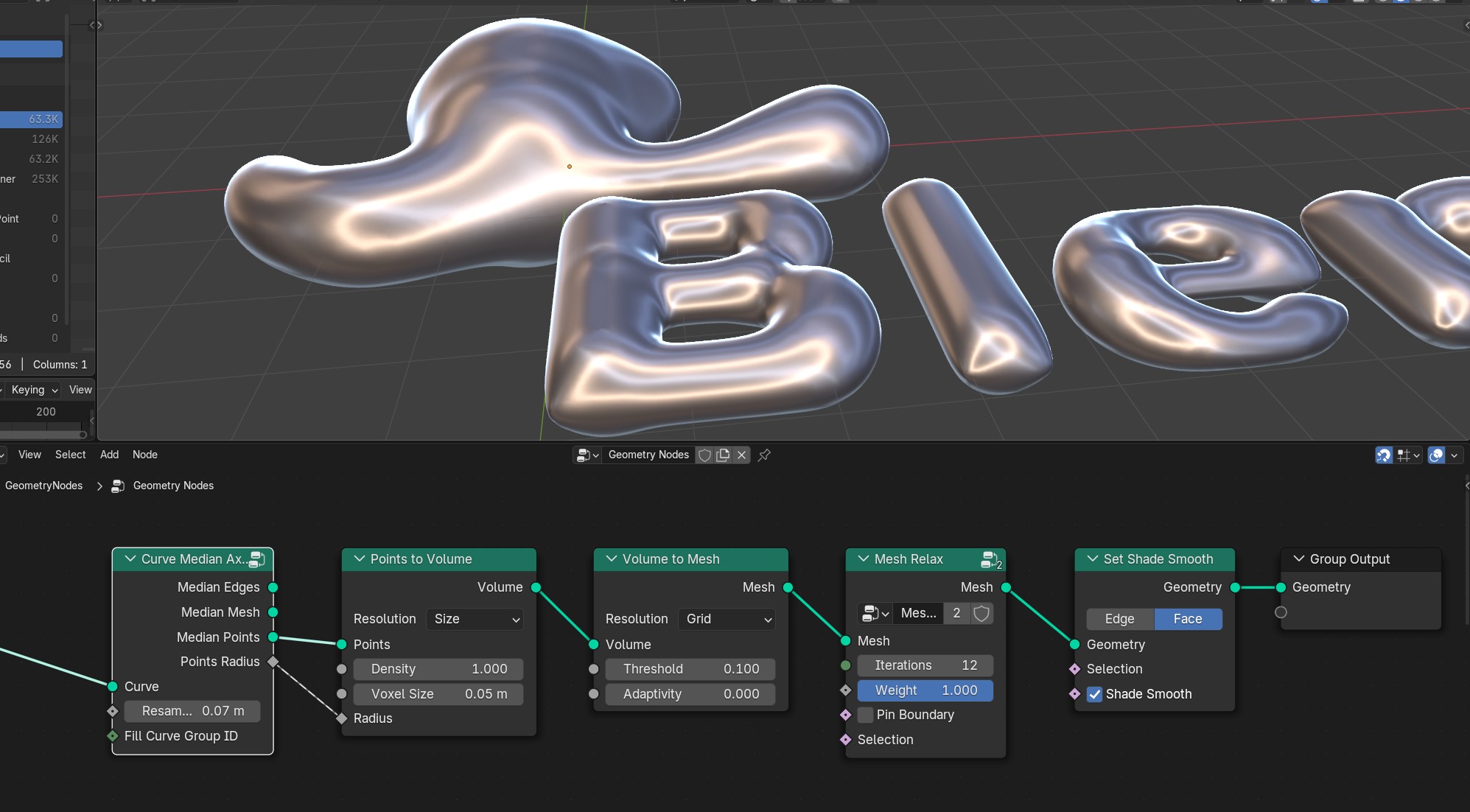

Curve Mesh Boolean
Cuts curve using a mesh
Diff/Inter/Slice
Diff: Difference boolean mode
Inter: Intersection boolean mode
Slice: Slice boolean mode
- Intersecting points
Outputs true boolean value on new points that been created from mesh boolean
Warning
Singe curve segment can only be cut one time
Curve Offset
Evenly offsets curve from axis or normal
- Duplicate
Duplicates input curves
- Distance
Distance of the offset
- Axis Rotation
Rotation of the axis
- Offset
Offsets distance offset
- Axis/Normal
Uses axis vector or the curve normal
- Axis
Axis direction
Curve Point Angle
Calculates curve points angle from its neighbors points
- Angle
Angle output in radians from 0 to 3.14159
Decimate Curve
Removes curve points depending on curve curvature
- Angle
Cuve points greater then angle that points will be removed
- Smooth
Smooths curve to minimize the gaps
Warning
Cyclic curves decimate results can be undesirable
Even Curve to Mesh
Makes curve radius even
- Profile Curve
Profile Curve
- Fill Caps
Fill Caps
Heart
Curve heart shape

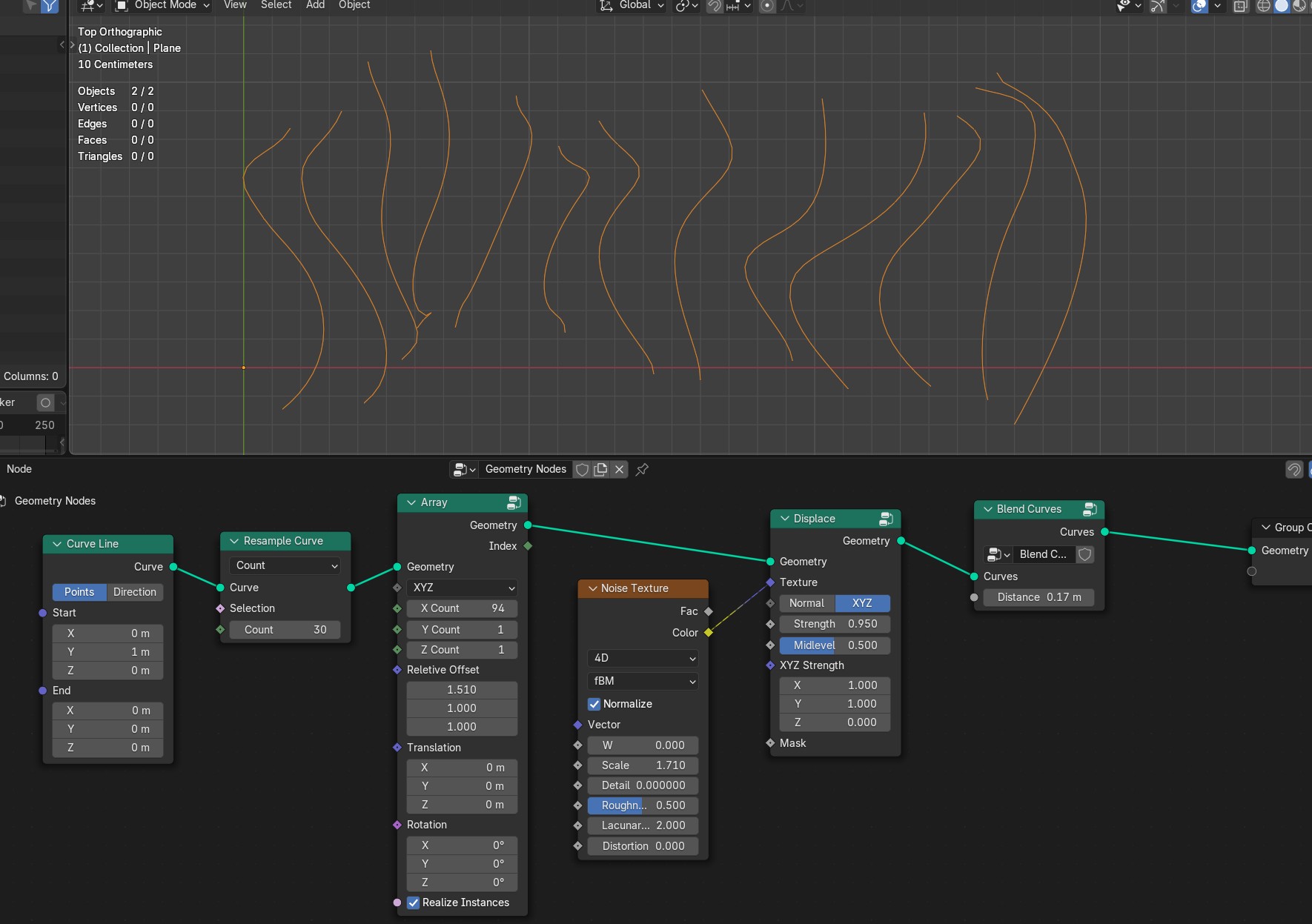

Loft Splines
Connects splines
- Bezier/Catmull/Poly
Interpolation method
- Resample Splines
Resamples splines. Tip: Use it if splines has uneven controls points
- Resample Count
Resamples spline points count
- Subdivide
Subdivides connection between splines
- Cyclic Splines
Connects input splines
- Cyclic Loft
Connected loft
Poly Arc
Creates circle arcs smootly connected from curve segments
- Resolution
Resolution of each segment arc
- Auto Tangent
Automaticaly creates tangent that first curve segment arc will follow
- First Point Tangent
Tangent direction that first curve segment arc will follow
- Connect Segment
Connects each arcs segments
- Set Cyclic
Connects first arc with the last arc
- Arc/Poly
Connection type
Warning
Node only works with single spline and spline can only have maximum of 40 segments. In Blender 4.0 works with unlimited curve segments
Splines Patch
Creates grid patch from 4 splines

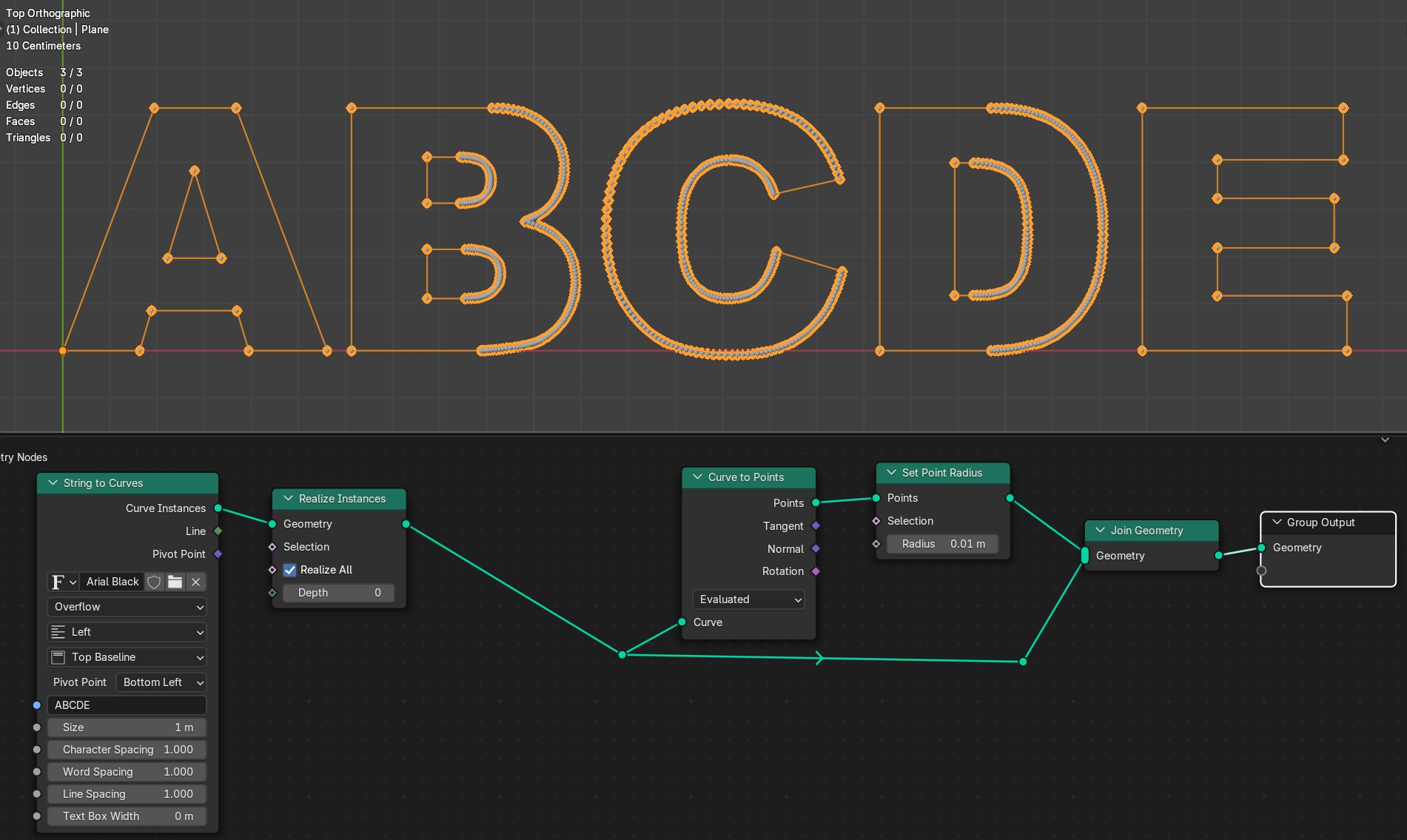

Resample/Set Resolution
Resample: Resamples input splines
Set Resolution: Set resolution for Bezier splines
- U Resolution
Sets grid resolution for rows
- V Resolution
Sets grid resolution for columns
Tubes to Splines
Converts mesh tubes to splines
- Sort Index
Choses edge index to compare direction
- Epsilon
Value to match direction
- Delete Caps
Deletes caps that has more than 4 faces
Warning
Cylinder primitives or manually created cylinders might not work because of random indices
Twist Curve
Evenly offsets curve from axis or normal
- Spline Amount
Duplicates splines
- Factor/Lenth
Uses splines factor or lenth paramater for the rotations
- Thickness
Distance of the offset from the curve
- Rotation
Amount of rotation
UV Curve to Mesh
Creates UV map attribute for curves
- Profile Curve
Profile Curve
- Fill Caps
Fill Caps
Factor/Lenth
Factor: Scales UV map to curve parameter factor
Lenth: Scales UV map to curve lenth
- UV Attribute
Attribute name for storing UV attribute on mesh
- Pack UV Islands
Packs UV Islands
- Margin
Gap between UV islands
- Rotate
Rotates UV islands for better packing
