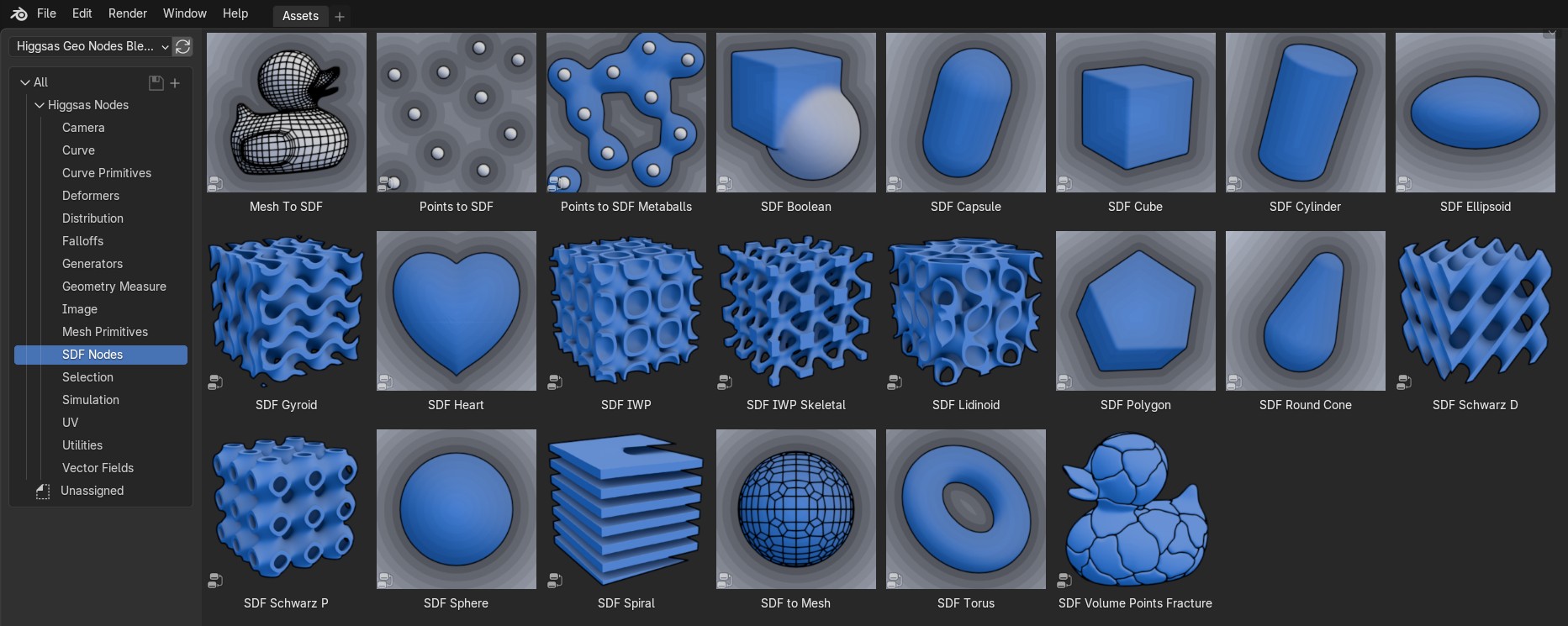

SDF Nodes

SDF - Signed distance fields creates 3d volume surface that can be definded using mathematical functions

Mesh to SDF

_images/sdftm.PNG

Converts mesh to SDF volume

Iso

Volume offset from mesh surface to inside/outside

_images/sdftm2.PNG _images/sdftm3.PNG
Fill Volume

Fills SDF volume

_images/sdftm5.PNG

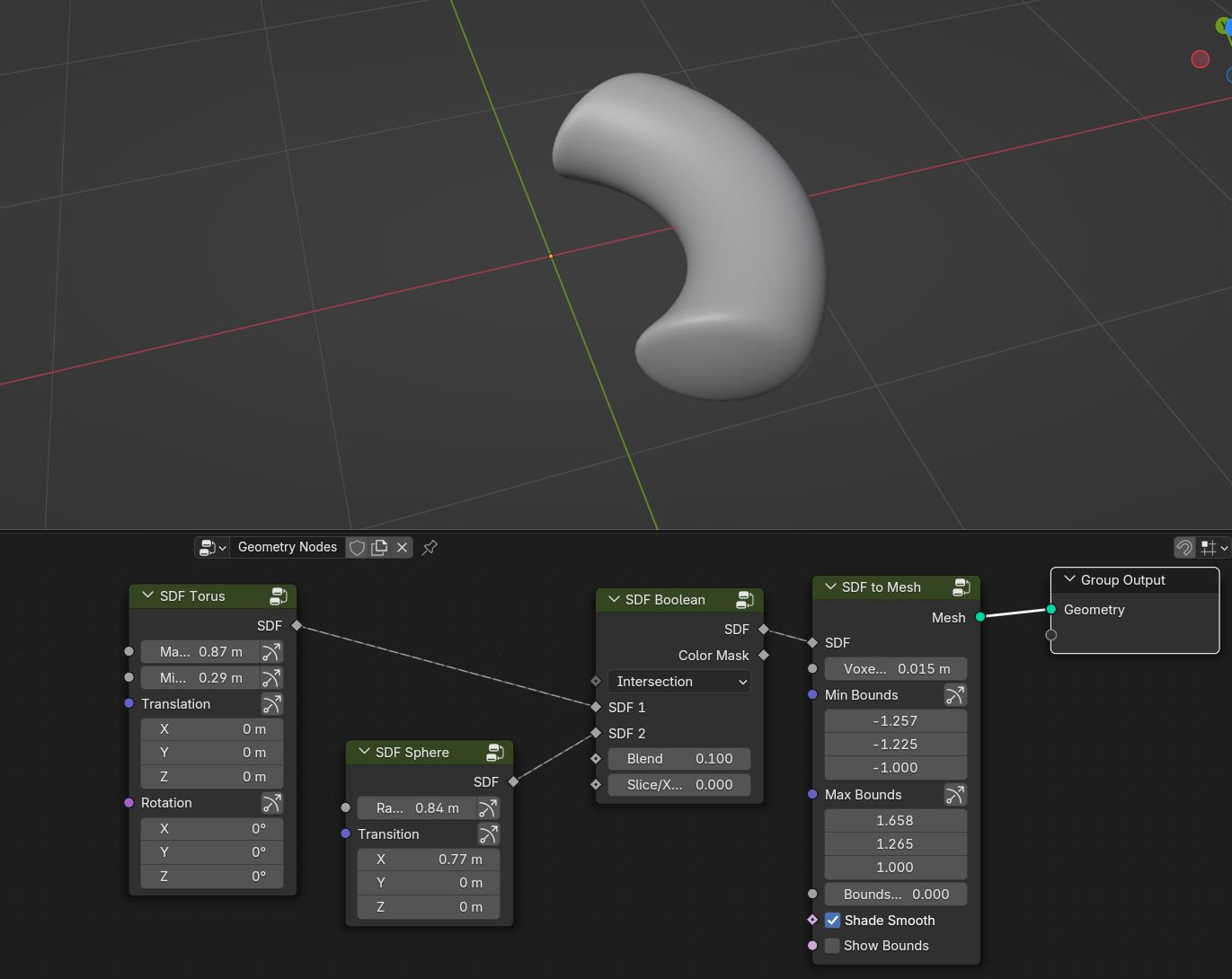

SDF Boolean

Creates boolean operation between 2 SDFs volumes

_images/sdfb1.PNG _images/sdfb2.PNG _images/sdfb3.PNG

Uni / Dif / Int

  • Uni Union operation

  • Dif Difference operation

  • Int Intersection operation

SDF 1

First SDF input

SDF 2

Second SDF input

Blend

Smoothly blends boolean operation between 2 SDFs

_images/sdfb4.PNG
Color Mask

Crates mask between 2 SDFs

_images/sdfb5.PNG _images/sdfb6.PNG

SDF Capsule

_images/sdfcap.PNG

SDF Cube

_images/sdfcube.PNG

SDF Cylinder

_images/sdfcyl.PNG

SDF Gyroid

_images/sdfgy.PNG

SDF Heart

_images/sdfheart.PNG

SDF Polygon

_images/sdfpo.PNG

SDF Sphere

_images/sdfsp.PNG

SDF to Mesh

Converts SDF volume to mesh

_images/sdftomesh.PNG
SDF

SDF field that mesh will be created

Voxel Size

Density of the mesh created. Lower values = dense mesh

Min Bounds

Position in 3d space that volume will be calculated

Max Bounds

Position in 3d space that volume will be calculated

Bounds Padding

Extends voxels from the bounds

Shade Smooth

Shades mesh smooth

Show Bounds

Shows bounds visualisation that volume will be calculated

SDF Torus

_images/sdftor.PNG

SDF Volume Points Fracture

Fractures mesh volume from points

_images/svpf.PNG
Voxel Size

Size of the voxel

Smoothing

Creates smoother/beveled fracture edges

Gap

Gap between cells

Noise Distortion

Distorts fracture cells using noise texture
